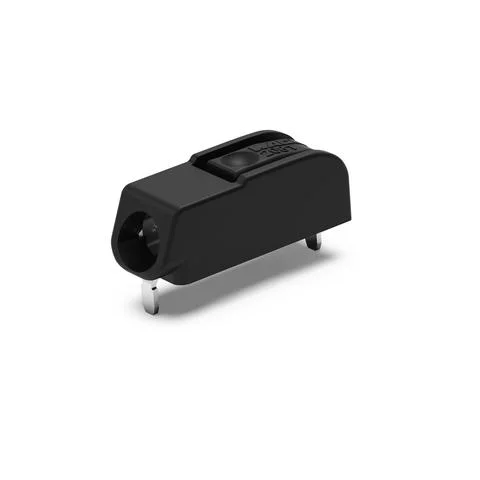

2061-1621/998-404 - THR PCB terminal block; push-button; Push-in CAGE CLAMP; AWG 20 - 16; Pin spacing 6 mm; pin length 1.5 mm; 1-pole; in tape-and-reel packaging; black
- Brand: Wago
- Product Code: 2061-1621/998-404
Description: THR PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons Push-in termination of solid and ferruled conductors Convenient termination/removal of fine-stranded conductors via push-buttons Just 5.6 mm tall Available in tape-and-reel packaging for automated assembly Also suitable for wave soldering Assemble terminal blocks without pole loss
Description: THR PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons Push-in termination of solid and ferruled conductors Convenient termination/removal of fine-stranded conductors via push-buttons Just 5.6 mm tall Available in tape-and-reel packaging for automated assembly Also suitable for wave soldering Assemble terminal blocks without pole loss
- Available Quantity: 0
$0.91
Electrical data
IEC Approvals
Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250 |
Rated impulse voltage (III/3) | 4 |
Rated voltage (III/2) | 320 |
Rated impulse voltage (III/2) | 4 |
Nominal voltage (II/2) | 630 |
Rated surge voltage (II/2) | 4 |
Rated current | 17.5 |
Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
UL Approvals
Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600 |
Rated current UL (Use Group B) | 10 |
Rated voltage UL (Use Group D) | 600 |
Rated current UL (Use Group D) | 5 |
Notes
Note | Application notes: Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. |
Note | Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality. |
Recommendation | Recommendation for stencil: 150 µm material thickness |
Connection data
Total number of connection points | 1 |
Total number of potentials | 1 |
Number of connection types | 1 |
Number of levels | 1 |
Physical data
Pin spacing | 6 mm / 0.24 inches |
Width | 5.7 mm / 0.224 inches |
Height | 8 mm / 0.315 inches |
Height from the surface | 5.6 mm / 0.22 inches |
Depth | 15.2 mm / 0.598 inches |
Solder pin length | 2.4 |
Solder pin dimensions | 1.2 x 0.35 mm |
Plated through-hole diameter (THR) | 1.5 (+0.1) mm |
Reel diameter of tape-and-reel packaging | 330 |
Tape width | 24 |
PCB contact
PCB Contact | THR |
Solder pin arrangement | Over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 |
Material data
Note (material data) | |
Color | black |
Material group | I |
Insulation material | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 |
Contact material | Copper alloy |
Contact plating | Tin |
Weight | 0.5 |
Environmental requirements
Limit temperature range | -60 … +105 °C |
