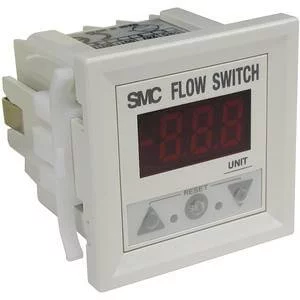

PF2W3- Digital Flow Monitor- 1-Color Display- IP40- for PF2W5 Sensors - PF2W3, Digital Flow Monitor, 1-Color Display, IP40, for PF2W5 Sensors
- Brand: SMC
- Product Code: PF2W3- Digital Flow Monitor- 1-Color Display- IP40- for PF2W5 Sensors
Description: PF2W3 is a monitor with display for the PF2W5 remote flow sensors. PF2W is a legacy series refreshed in 2009 as PF3W. Please consider the newer products for your applications. The sensor and monitor can be located up to 3m apart using PF2A5's optional cable. The red 3-digit LED display can show instantaneous or accumulated flow. 2 NPN or PNP switch outputs are included, with an LED indicator for each, located below the display. Units can be switched between L/min or gal/min (flow), and L or gal (accumulation). A key lockout function can prevent accidental setting changes during operation. A panel mount adapter is standard. PF2W3 is IP40 rated, and CE and RoHS compliant.
Description: PF2W3 is a monitor with display for the PF2W5 remote flow sensors. PF2W is a legacy series refreshed in 2009 as PF3W. Please consider the newer products for your applications. The sensor and monitor can be located up to 3m apart using PF2A5's optional cable. The red 3-digit LED display can show instantaneous or accumulated flow. 2 NPN or PNP switch outputs are included, with an LED indicator for each, located below the display. Units can be switched between L/min or gal/min (flow), and L or gal (accumulation). A key lockout function can prevent accidental setting changes during operation. A panel mount adapter is standard. PF2W3 is IP40 rated, and CE and RoHS compliant.
