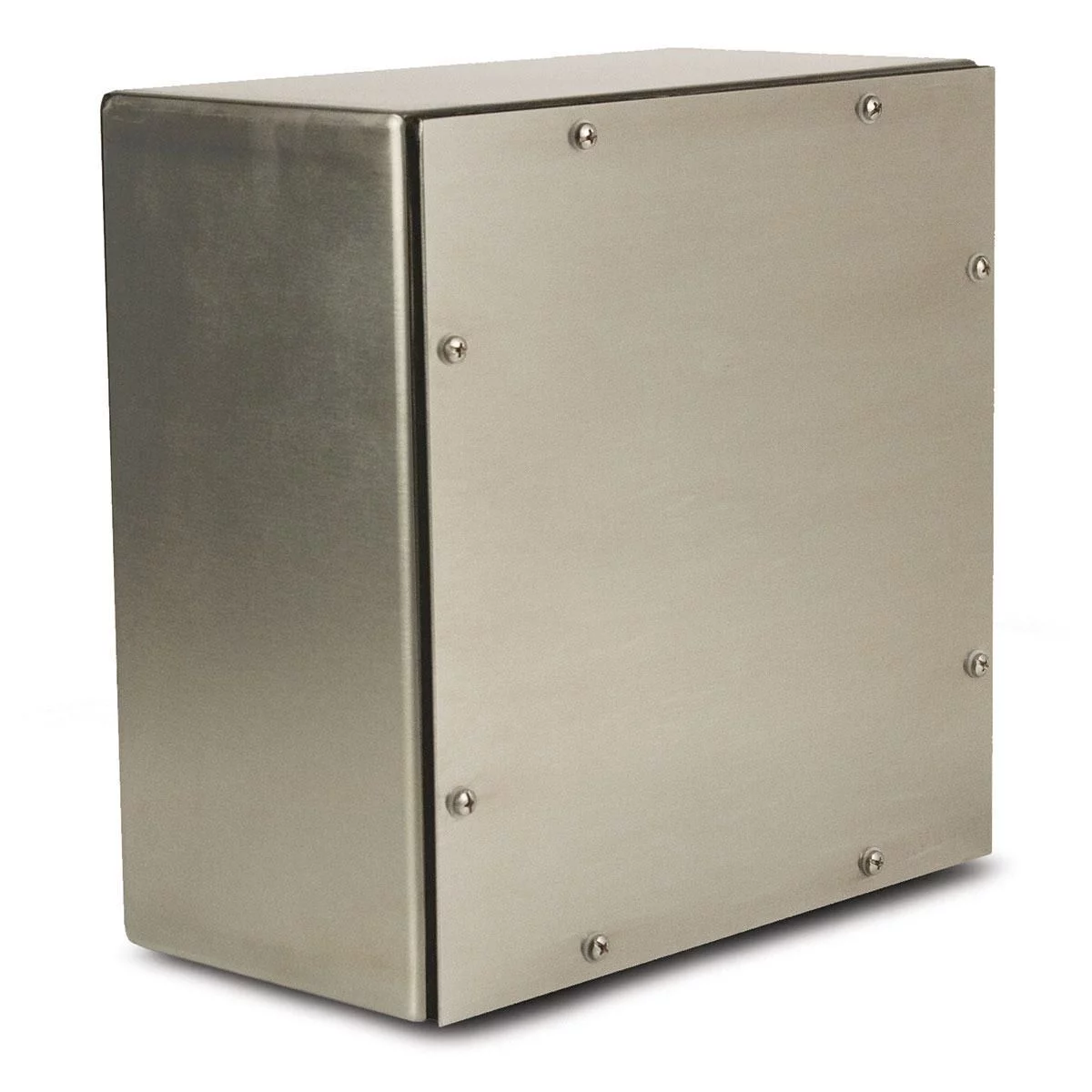

WA081004GSCSSA - NEMA 4X Gasketed Screw Cover 8X10X4 316 Stainless Steel

  • Brand: Wiegmann
  • Product Code: WA081004GSCSSA
Description: Designed for use as a wiring box, junction box, pull box, or terminal box with many indoor and outdoor applications where dust or moisture is a problem. Bodies and covers are fabricated from 304 stainless steelSeams are continuously welded and ground smoothCover contains a closed cell oil resistent neoprene gasketGround stud is located on the inside of the coverNo mounting provisions are provided
Description: Designed for use as a wiring box, junction box, pull box, or terminal box with many indoor and outdoor applications where dust or moisture is a problem. Bodies and covers are fabricated from 304 stainless steelSeams are continuously welded and ground smoothCover contains a closed cell oil resistent neoprene gasketGround stud is located on the inside of the coverNo mounting provisions are provided
  • Available Quantity: 0

$607.18

Specifications
General

Application

Designed for use as a wiring box, junction box, pull box, or terminal box with many indoor and outdoor applications where dust or moisture is a problem.

Construction

Continuously Welded Seams

Cover Type

Screw Cover

Finish Type

Smooth Grained

Material

316 Stainless Steel

Mounting Type

Wall

Number of Doors (Fixed)

1

UPC

786725890941
Dimensions

Actual Height

8.125 in

Actual Width

10.125 in

Cubic Capacity

320 cu.in

Depth

4 in

Height

8 in

Width

10 in
Certifications and Compliance

Certified Listed

cULus

Nema Rating

4, 4X, 12, 13
Logistics

Carton Quantity

1
